Flatbeds

FLATBEDS

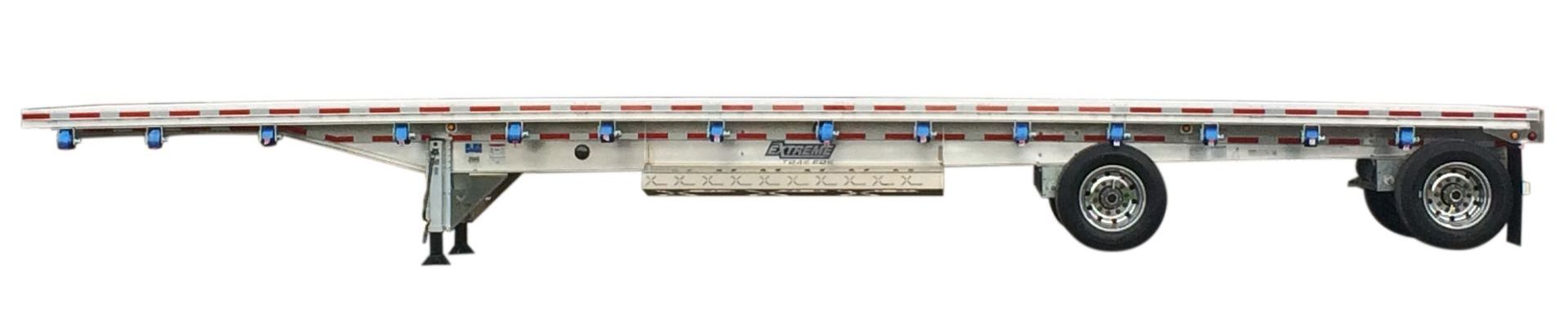

XP SERIES: XP55, XP65, XP75

Industry Best Tare Weight. Haul More Freight

When it comes to knowing what Fleets, Trucking Companies, Owner Operators, and Drivers have known all along, that tare weight matters, we’ve got you covered. We made it our goal to innovate Extreme Trailer’s patent-pending platform trailers to significantly eliminate weight. Featuring an industry best tare weight reduction of 1,000 lbs.to 1,800 lbs., you can haul more freight, not more trailer weight. The XP series has 35%-50% stronger decking and when you add up reduced tare weight, reduced maintenance, reduced downtime, and better back hauls, you know it’s more profit to your bottom line.

XP55 The Original

With its industry best tare weight and patent-pending design, this all aluminum beauty is built to last. When you add up the XP55 trailer’s reduced tare weight, reduced maintenance, reduced downtime, and better back-haul opportunities, you can count on more profit in every haul. Rated to handle loads from 55,000 lbs. in a 4ft. area, 60,000 lbs. in a 10ft. area, and a GVWR up to 100,000 lbs. the XP55 is a great value for most flatbed hauls.

XP65 When Flexibility Matters

Designed with all the features and benefits of the XP55, the XP65 meets the needs of applications requiring higher concentrated load ratings at industry best tare weights. It handles loads up to 65,000 lbs. in a 4ft. area, 75,000 lbs. in a 10ft. area and a GVWR up to 110,000 lbs.

XP75 When Nothing but Heavy Duty will Do

Our XP75 is light on tare weight, heavy on payload and offers one of the highest concentrated load ratings in an aluminum flatbed. Handling loads from 75,000 lbs. in a 4ft. area, 85,000 lbs. in a 10ft. area, and a GVWR up to 120,000 lbs. You can’t go wrong with the XP75 - an ideal trailer for many applications.

Exceptional Quality, Outstanding Value

All Extreme Trailers are manufactured in our fully equipped facility in Northeast Ohio. Each quality product we manufacture is backed by our promise of unmatched service and driven by an experienced, talented and dedicated, staff of industry professionals.

XP Standard specifications


XP55	55,000 lbs. rating in 4 ft. 65,000 lbs. rating in 10 ft.
XP65	65,000 lbs. rating in 4 ft. 75,000 lbs. rating in 10 ft.
XP75	75,000 lbs. rating in 4 ft. 85,000 lbs. rating in 10 ft.
Length	45ft, 48ft, 53ft
Main Beam	2-piece extruded and welded
Neck Transition	8”, 11”, 13” deep
Floor	Patented 12” decking with 2 nailers + “CRT” Crush Resistant TechnologyTM + Multi-position J-Track (up to 5 locations)
Crossmembers	C Style 14” and 18” on center + coil pack options for concentrated loads
Side Rail	J-Track, with spools pockets and rub rail
Suspension	MTM23T Meritor/ with AxlePak5 (5-year wheel end warranty)***
Kingpin	18”-36”
Brake System	Wabco iABS
Landing Gear	Jost AX150 (10 year warranty)
Electrical/Lights	Grote ULTRA-BLUE-SEAL harness + 5 markers (including mid-turn marker combo) + rear lights 3-STT, 3-ICC markers, 3-STT
Tires	RoadX RH652 (available in 22.5 or 24.5) Bridgestone (available in 22.5 or 24.5)
Additional Features	Removable front and rear access panels, Bolt on bumper, Patent pending interior cross frame members, Air and electric lines; separated for ease of maintenance, Winch track, road side or road and curb side, Winches and straps, 4-post enclosed bolt on rear bumper, Auxiliary power cords with 7-way ISO plug or 4 pin plug, Lift axle with manual and/or electric controls, Dual air and electric (front and between landing gear)
Warranty	5-year limited (all purchased components are covered by original manufacture)
**	Capacity based on 48 ft. length with 24" king pin setting and 122" suspension spacing. Capacities will change by changing configuration.
***	Disc brakes available
